Industrial remote controller

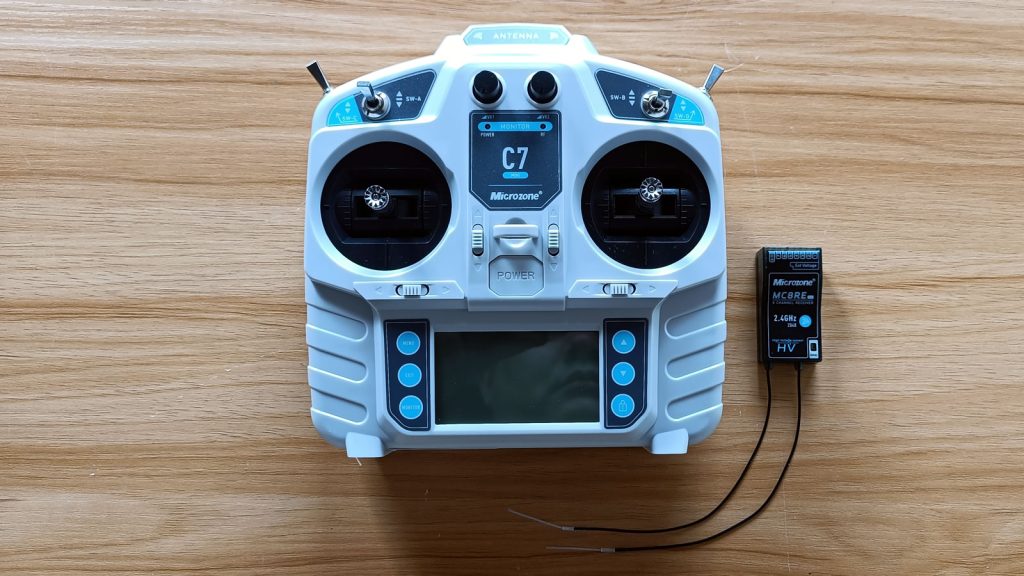

The Microzone C7 Mini Plus is a professional 10-channel industrial radio controller featuring 2.4GHz FHSS technology, a color LCD display, emergency stop protection, cruise control, and programmable control parameters.

Specifications

Key FeaturesModel: C7 Mini Plus
Communication Protocol: 2.4GHz FHSS (Frequency Hopping Spread Spectrum)
Channels: 10 Channels
Channel Resolution: PCM1024
Frequency Band: 2401~2478MHz
RF Output Power: ≤100mW
Control Range: ≥800m (open area)
Display: 320240 Color LCD Screen Language: Chinese / English Low Voltage Alarm: Supported Charging Port: USB Type-C Dimensions: 246125*125mm
Weight: 705g
Compatible Receivers: MC210R, A3000, A1600, A900, A800, B1800-A, B1800, B1700, R860, R850, R830

Key Features

Long-Range Reliable Control

• Advanced 2.4GHz FHSS technology
• Control range of over 800 meters in open environments
• Excellent anti-interference performance
• Stable and reliable wireless communication

Professional Industrial Design

• Designed for industrial and agricultural equipment
• Suitable for remote-controlled lawn mowers, tracked carriers, sprayers, transport vehicles, and robotic platforms
• Durable construction for demanding outdoor applications

Color LCD Display

• 320 × 240 high-resolution color screen
• Real-time operating status display
• Signal strength monitoring
• Battery level indication
• Mode and parameter display

Emergency Stop Function

• Dedicated emergency stop switch
• Instantly cuts control output when activated
• Audible and visual alarm notifications
• Enhanced operational safety

Cruise Control Function

• Maintains a constant travel speed
• Reduces operator fatigue during long working hours
• Ideal for mowing, spraying, and transport applications

Fully Adjustable Parameters

• Joystick sensitivity adjustment
• Channel reverse function
• Endpoint adjustment
• Fine tuning and calibration
• Channel mixing
• RF power settings
• Advanced configuration options

Multiple Operating Modes

• Supports multiple joystick configurations
• High-speed and low-speed modes
• Adaptable to different machine types and operator preferences

USB Type-C Charging

• Convenient charging interface
• Fast and easy charging
• Compatible with common USB Type-C chargers

Key Lock Function

• Prevents accidental operation
• Useful during transportation and storage
• Improves safety and reliability
